Woven wire mesh(plain & twill weave)

We supply stainless steel woven wire mesh, Super duplex stainless steel wire mesh, Nickel wire mesh ,Titanium wire mesh , which fabricated with different type of materials for different application use , Mini mesh filtration start from 1um .

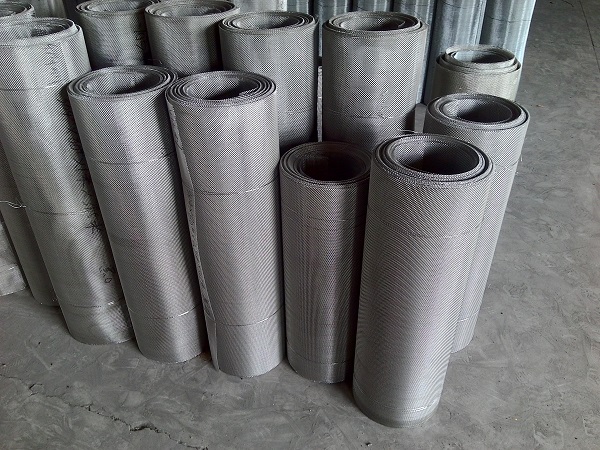

Woven Wire Mesh Rolls
Fabrication type : plain weave, twill weave, dutch weave .
Standard length : 30m
Mesh per line inch : 1- 600mesh(plain & twill) , 12- 2800mesh(dutch)
Standard width ：1m , 1.2m , 1.5m .

For different wire and apertures ,thousands of specs for woven wire mesh , it is widely used in many industry areas , and purpose, for example .
- Normal filtration
- PEM Electrolyzer
- Hydrogen equipment
- Fuel cell application
- Seawater filtration
- Offshore filtration

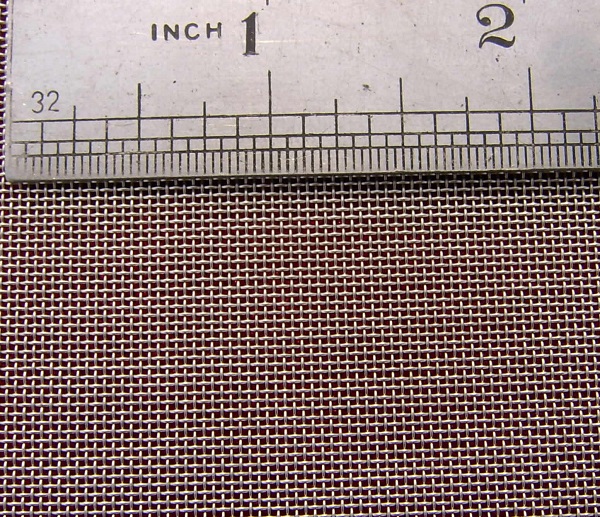

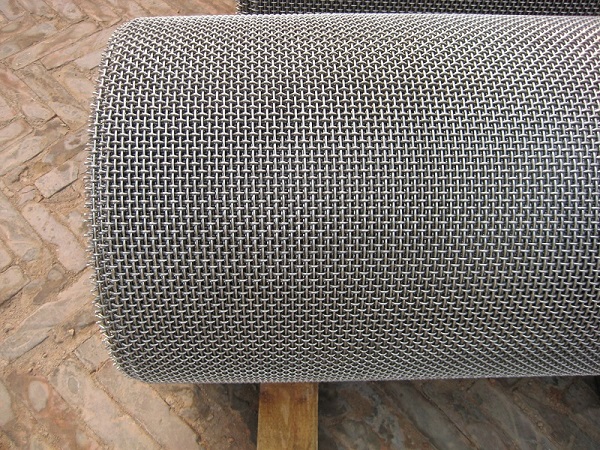

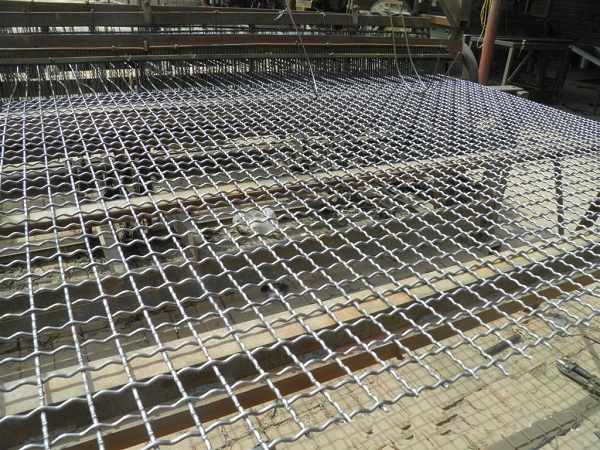

crimped wire	wire mesh roll	plain weave wire mesh

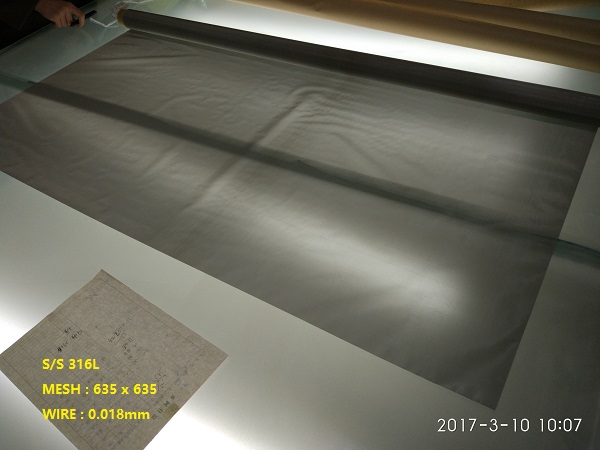

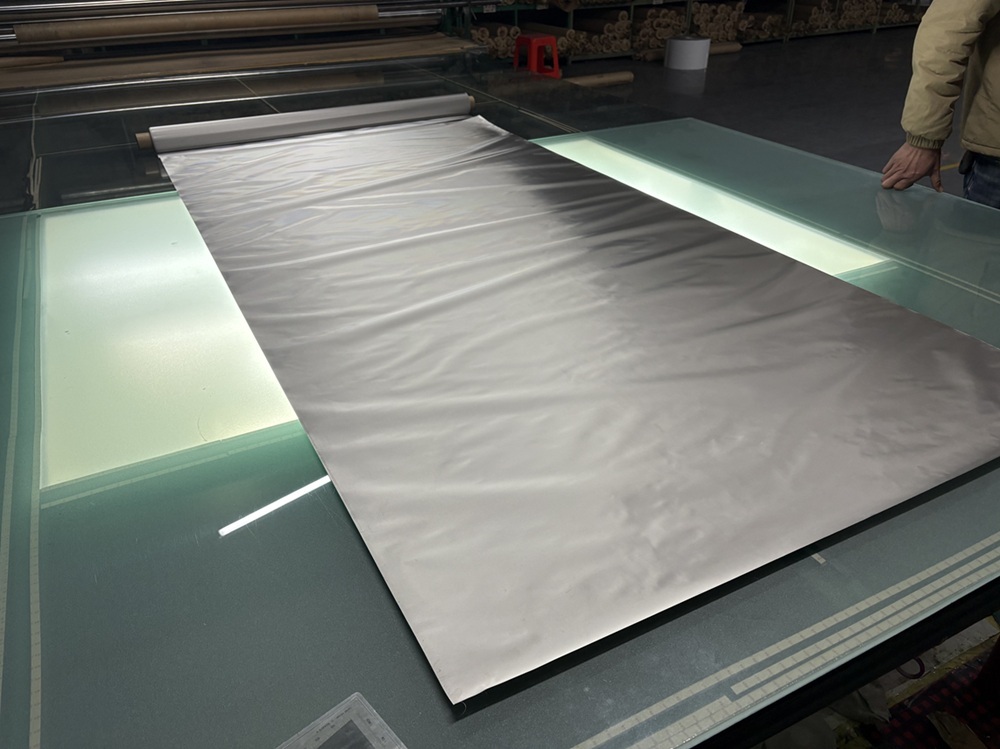

wire mesh	635mesh	5um wire mesh

Crimped wire mesh Mesh Wire Aperture Width Length holes/Inch mm mm m m 20 0.5 0.77 1/1.22 30 18 0.5 0.91 1/1.22 30 16 0.5 1.09 1/1.22 30 16 0.6 0.99 1/1.22 30 14 0.5 1.31 1/1.22 30 14 0.6 1.21 1/1.22 30 12 0.5 1.62 1/1.22 30 12 0.6 1.52 1/1.22 30 12 0.7 1.42 1/1.22 30 10 0.5 2.04 1/1.22 30 10 0.6 1.94 1/1.22 30 10 0.7 1.84 1/1.22 30 10 0.8 1.74 1/1.22 30 10 0.9 1.64 1/1.22 30 10 1 1.54 1/1.22 30 8 0.6 2.58 1/1.22 30 8 0.7 2.48 1/1.22 30 8 0.8 2.38 1/1.22 30 8 0.9 2.28 1/1.22 30 8 1 2.18 1/1.22 30 6 0.6 3.63 1/1.22 30 6 0.8 3.43 1/1.22 30 6 0.9 3.33 1/1.22 30 6 1 3.23 1/1.22 30 6 1.2 3.03 1/1.22 30 6 1.5 2.73 1/1.22 30 Mesh Wire Aperture Width Length holes/Inch mm mm m m 5 0.6 4.48 1/1.22 30 5 0.7 4.38 1/1.22 30 5 0.9 4.18 1/1.22 30 5 0.9 4.18 1/1.22 30 5 1 4.08 1/1.22 30 5 1.2 3.88 1/1.22 30 5 1.5 3.58 1/1.22 30 4 0.7 5.65 1/1.22 30 4 0.7 5.65 1/1.22 30 4 0.8 5.55 1/1.22 30 4 0.9 5.45 1/1.22 30 4 1 5.35 1/1.22 30 4 1.2 5.15 1/1.22 30 4 1.4 4.95 1/1.22 30 3.74 0.8 6 1/1.22 30 3.68 0.9 6 1/1.22 30 3.63 1 6 1/1.22 30 3.53 1.2 6 1/1.22 30 3.39 1.5 6 1/1.22 30 2.85 0.9 8 1/1.22 30 2.82 1 8 1/1.22 30 2.76 1.2 8 1/1.22 30 2.67 1.5 8 1/1.22 30 2.31 1 10 1/1.22 30 2.27 1.2 10 1/1.22 30 2.23 1.4 10 1/1.22 30 2.21 1.5 10 1/1.22 30 2.13 1.9 10 1/1.22 30 2.12 2 10 1/1.22 30 2.08 2.2 10 1/1.22 30 1.92 1.2 12 1/1.22 30 1.90 1.4 12 1/1.22 30 1.88 1.5 12 1/1.22 30 1.55 1.4 15 1/1.22 30 1.54 1.5 15 1/1.22 30 1.51 1.8 15 1/1.22 30 Mesh Wire Aperture Width Length holes/Inch mm mm m m 1.50 1.9 15 1/1.22 30 1.49 2 15 1/1.22 30 1.45 2.5 15 1/1.22 30 1.17 1.8 20 1/1.22 30 1.16 1.9 20 1/1.22 30 1.15 2 20 1/1.22 30 1.13 2.5 20 1/1.22 30 1.10 3 20 1/1.22 30 0.95 1.8 25 1/1.22 30 0.94 1.9 25 1/1.22 30 0.94 2 25 1/1.22 30 0.92 2.5 25 1/1.22 30 0.91 3 25 1/1.22 30 0.78 2.5 30 1/1.22 30 0.77 3 30 1/1.22 30

Plain woven wire mesh Mesh Wire Aperture Width Length holes/Inch mm mm m m 20 0.19 1.08 1/1.22 30 20 0.21 1.06 1/1.22 30 20 0.23 1.04 1/1.22 30 20 0.25 1.02 1/1.22 30 20 0.27 1.00 1/1.22 30 20 0.3 0.97 1/1.22 30 20 0.35 0.92 1/1.22 30 20 0.37 0.90 1/1.22 30 20 0.4 0.87 1/1.22 30 20 0.45 0.82 1/1.22 30 22 0.35 0.80 1/1.22 30 24 0.21 0.85 1/1.22 30 24 0.23 0.83 1/1.22 30 24 0.25 0.81 1/1.22 30 24 0.27 0.79 1/1.22 30 24 0.3 0.76 1/1.22 30 24 0.35 0.71 1/1.22 30 30 0.15 0.70 1/1.22 30 30 0.17 0.68 1/1.22 30 30 0.19 0.66 1/1.22 30 30 0.21 0.64 1/1.22 30 30 0.23 0.62 1/1.22 30 30 0.25 0.60 1/1.22 30 30 0.27 0.58 1/1.22 30 30 0.29 0.56 1/1.22 30 30 0.3 0.55 1/1.22 30 Mesh Wire Aperture Width Length holes/Inch mm mm m m 40 0.13 0.51 1/1.22 30 40 0.15 0.49 1/1.22 30 40 0.17 0.47 1/1.22 30 40 0.19 0.45 1/1.22 30 40 0.21 0.43 1/1.22 30 40 0.23 0.41 1/1.22 30 40 0.25 0.39 1/1.22 30 40 0.27 0.37 1/1.22 30 50 0.12 0.39 1/1.22 30 50 0.13 0.38 1/1.22 30 50 0.15 0.36 1/1.22 30 50 0.17 0.34 1/1.22 30 50 0.19 0.32 1/1.22 30 60 0.09 0.33 1/1.22 30 60 0.1 0.32 1/1.22 30 60 0.11 0.31 1/1.22 30 60 0.12 0.30 1/1.22 30 60 0.13 0.29 1/1.22 30 60 0.15 0.27 1/1.22 30 60 0.17 0.25 1/1.22 30 80 0.09 0.23 1/1.22 30 80 0.1 0.22 1/1.22 30 80 0.12 0.20 1/1.22 30 80 0.13 0.19 1/1.22 30 100 0.07 0.18 1/1.22 30 100 0.08 0.17 1/1.22 30 100 0.09 0.16 1/1.22 30 100 0.1 0.15 1/1.22 30 100 0.11 0.14 1/1.22 30 120 0.07 0.14 1/1.22 30 120 0.08 0.13 1/1.22 30 120 0.09 0.12 1/1.22 30 150 0.06 0.11 1/1.22 30 150 0.07 0.10 1/1.22 30 180 0.06 0.081 1/1.22 30 180 0.05 0.091 1/1.22 30 Mesh Wire Aperture Width Length holes/Inch mm mm m m 200 0.05 0.077 1/1.22 30 200 0.04 0.087 1/1.22 30 230 0.036 0.074 1/1.22 30 250 0.04 0.062 1/1.22 30 270T 0.04 0.054 1/1.22 30 270 0.035 0.059 1/1.22 30 300T 0.04 0.045 1/1.22 30 300 0.03 0.054 1/1.22 30 325T 0.035 0.042 1/1.22 30 325 0.028 0.050 1/1.22 30 350 0.022 0.050 1/1.22 30 350T 0.035 0.038 1/1.22 30 400 0.022 0.040 1/1.22 30 400T 0.03 0.033 1/1.22 30 450 0.020 0.036 1/1.22 30 450T 0.025 0.031 1/1.22 30 500T 0.025 0.026 1/1.22 30 635T 0.018 0.022 1/1.22 30

For dutch weave wire mesh , twill dutch weave wire mesh .
